Can I Plug My Fleetwood RV Into Home Electric?


()

How to Plug Your RV Into Home Electric

How to Plug Your RV Into Home Electric

I just bought a 29 foot Fleetwood Carry. The battery is down on it. I have it in my driveway can I hook it up to my house electric? If so, how? This is my first RV.

Thank You

Herman Doolin

ANSWER: Hi Herman, first let me congratulate you on your new RV and welcome you to the RVing lifestyle. Yes you can plug your RV into your home electric, but you will need some electrical adapters to do it. I have never heard of a Fleetwood RV model called a Carry, so I am not sure if you have a Fleetwood Trailer or Motorhome. It really does not matter though, because the procedure to hook up to your home electricity is the same.

Determine if your RV is set up for 50 Amps or 30 Amps:

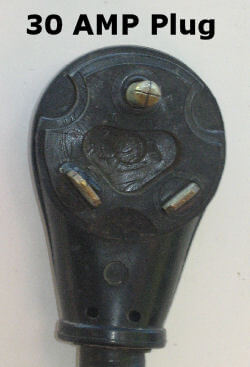

If you have the owner’s manual for the RV it will tell you if you require 30 amp or 50 amp service. Either way you can run some of the appliances (with limitations) off of a 15 or 20 amp household 3 prong receptacle. If you do not have the manual, the easiest way to determine the setup is taking a look at the male plug in the electrical compartment of Your RV. Then look at the pictures below.




Now that we know what setup you have look below to find out what adapters you will need.

30 Amp Setup The setup is pretty straight forward; all you need is a 30 Amp Female to 15 Amp Male Adapter. Either one of the adapters listed below will work.

Camco 55165 RV 12" PowerGrip Dogbone Electrical Adapter with Handle

Camco 55175 RV 18" PowerGrip Dogbone Electrical Adapter with Handle

50 Amp Setup You will need one of the 30 amp to 15 amp adapters listed above and you will also need a 50 Amp Female to 30 Amp Male adapter. Either one of the 2 adapters listed below will work for you.

Camco 55185 RV 18" PowerGrip Dogbone Electrical Adapter with Handle

Dogbone Adapter with Handle, 30 Amp Male to 50 Amp Female

Now you would plug your RV into the 50 Amp to 30 Amp adapter and plug the other end of the adapter into the 30 Amp to 15 Amp Adapter and plug that adapter into your home electric.

Just a reminder, you will not be able to run a lot of your appliances all at one time, due to being hooked up to 15 Amps. You could run one Air Conditioner but not two. You cannot use the Microwave at the same time as the Air Conditioner as you will trip the circuit breaker in the house.


I also would not plug anything into the house electrical circuit you are going to have your RV plugged into.

As long as you understand the electrical limitations you will have by plugging your RV into your home circuit you should be fine. I hope this information has been helpful to you.

Do you have any suggestions or comments on this topic? You can add them to this page by clicking on the "Click Here To Post Comments" link located near the bottom of this page.

Happy RVing

RVing Al

Comments for Can I Plug My Fleetwood RV Into Home Electric?

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
star
FLEETWOOD Shore power plug
by: jim flournoy

I don't know how old this page is but it is still not applicable to Fleetwood
Fleetwood 30 A 120v uses the same plug as the old 125-240v 3 blade dryer plug
3 wide flat blades in a Y
not the two flat blades and the round one shown
Plugging a Fleetwood Shore power 125 v 30a plug into a 125-250 v Dryer receptical is a disaster
best to use the 30 A to 20A adapter and plug into a standard 120 v receptical where the short contact is hot, long is neutral and round is ground (green)
my 2008 Jamboree is same cord
questioner can wire a dryer receptical with ONE 30 Amp breaker once he figures out which blade on the shore cable is hot and which is neutral
Hint check the adapter then trace to the plug
Hint the adapters are hard to find so get a spare
??? anyone make a fleetwood Y to RV 30 A adapter?

Rating
starstarstarstarstar
revers power
by: AnonymousJoe

I have a 30 amp rv service from my house to my rv that sits in my back yard know in case of a power outage can I power my house from my rv?

Rating
starstarstarstarstar
15 Amp Home Power AC Operation Motorhome
by: Anonymous

Yes, I can run one roof AC - but it doesn't seem to put out as well than if it was hooked to 50 amp - I guess that is a dumb summation?!? But I guess one can expect less performance on 15 amp vs. 50 amp even though you don't throw the breaker....

Rating
starstarstarstarstar
LP DETECTOR
by: RICHARD

I HAVE A 31' FLEETWOOD JAMBOREE [BEAUTIFUL]WHEN I HOOK UP TO CAMPGROUND POWER [30 AMPS] I HEAR THE LP DETECTOR [NOT THE ALARM] YOU CAN HEAR LIKE A SMALL FAN PULL IN AIR AND ON THE TOILET VENT YOU HEAR IT RELEASE , ABOUT ONCE EVERY 2 MIN. IS THIS NORMAL? IT WILL NOT DO IT WHEN I USE ONLY BATT. PWR.

Rating
starstarstarstarstar
no power
by: Anonymous

check your power at battery should have 13to14 volts.if not check fuses at power box.also could have worn out battery they only last 5to6 years.

Rating
starstarstarstarstar
battery draining
by: Anonymous

Have motorhome sitting in driveway plugged into 30 amp outlet and nothing on and battery still goes down what is happening?
